DSS - DELTA STEAM SYSTEMS

• Energy saving steam traps
• Reduce boiler fuel
• Save steam, water and water treatment chemicals
• No moving parts to maintain
• Constructed completely from stainless steel
• No spare parts required
• Guaranteed for 20 years

Delta venturi steam traps are unlike conventional mechanical steam traps which are consumables and need constant replacement. Delta venturi steam traps are long-term solutions to steam trapping problems.

Delta venturi steam traps compared to conventional steam traps
Delta venturi steam traps have no internal moving parts that can fail and break and do not need to be repaired or require spare parts. Because Delta steam traps have no internal moving parts and are constructed fully from stainless steel, they are guaranteed for 20 years giving the customer long-term peace of mind.

Because conventional mechanical steam traps all have moving parts that open and close valves to let condensate out, after a period of time they start to fail and begin to leak steam. Delta venturi steam traps are guaranteed for 20 years to not let this happen and they will not fail and leak steam.
Delta venturi steam traps use the downstream flash steam to self-regulate the upstream condensate flow and allows condensate to pass while keeping the steam in the system.

Because Delta venturi steam traps are guaranteed for 20 years the are more reliable than any conventional mechanical steam trap on the market.

DELTA VENTURI STEAM TRAP MODELS:

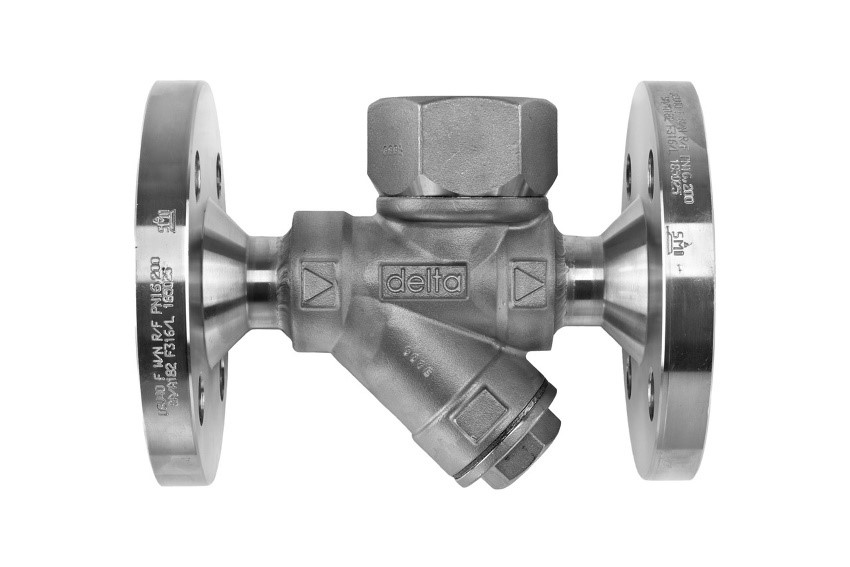

Model DSV-FWN DN15 – DN50 Flanged Version

The Delta model DSV-FWN venturi steam trap is designed for multipurpose applications from line drainage and trace heating, through to small to medium heat exchanger applications. The steam trap has a primary and secondary integrated strainer and a removable venturi insert. The body of the trap does not have to be removed from the line for maintenance purposes. Access to the insert and both primary and secondary strainers is via the top and bottom caps. The trap has no moving parts and is guaranteed for 20 years, delivering permanent solutions for all steam trapping applications.

Model DSV DN15 – DN25 Threaded or Socket Weld Version

The DSV model venturi steam trap is designed for multipurpose applications from line drainage, trace heating, through to medium heat exchanger applications.
The steam trap has a primary and secondary integrated strainer and a removable venturi insert. The body of the trap does not have to be removed from the line for maintenance purposes. Access to the insert and both primary and secondary strainers is via the top and bottom caps. The trap has no moving parts and is guaranteed for 20 years, delivering permanent solutions for all steam trapping applications.
DSV MODEL BENEFITS:

• Flexible length options on flanged units make it easy to match customer length requirements when replacing old traps
• Easily handles high and low condensate flows
• Accepts various venturi nozzle model sizes allowing for maximum efficiency in sizing
• Standard with two strainers allowing for maximum filtration where needed most
• Metal bonded graphite gaskets eliminates leakages
• In-line design allows for removal and cleaning of filters and venturi nozzle without removing from the piping
• Deflective nozzle inlet on venturi protects orifice from solids and blocking
• Constant discharge of condensate improves heat transfer and allows condensate to always be removed from the steam system
• 20-year guarantee

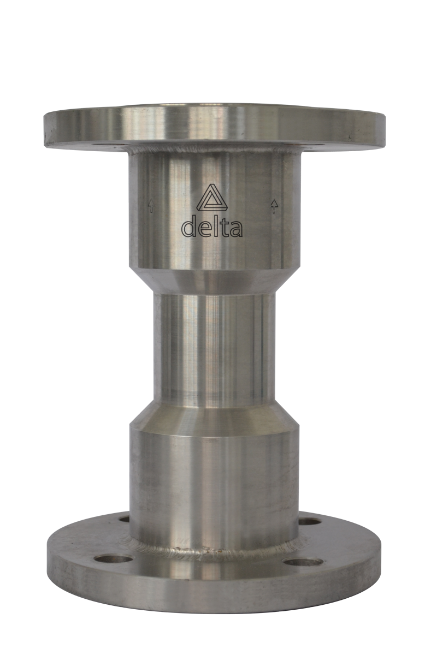

Model nHRi DN25 – DN50 Flanged

The Delta model nHRi flanged venturi steam trap is designed for medium to large process applications such as shell and tube or plate heat exchangers. The trap has no moving parts and is guaranteed for 20 years, delivering permanent solutions for all steam trapping applications.

Model nHRi-S DN25 – DN100 Flanged

The Delta model nHRi-S flanged venturi steam trap is designed for very large process applications such as reboilers or shell and tube heat exchangers. The trap has no moving parts and is guaranteed for 20 years, delivering permanent solutions for all steam trapping applications.

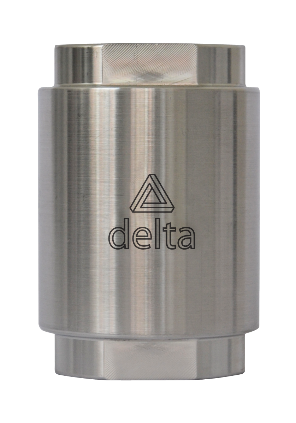

Model SCi DN40 – DN50 Threaded Version or Socket Weld

The Delta model Sci threaded or socket weld venturi steam trap is designed for medium to large process applications such as shell and tube or plate heat exchangers. The trap has no moving parts and is guaranteed for 20 years, delivering permanent solutions for all steam trapping applications.

nHRi, nHRi-S and SCi MODEL BENEFITS:

• Flexible length options make it easy to match customer length requirements when replacing old traps
• Easily handles high and low condensate flows
• Accepts various venturi nozzle model sizes allowing for maximum efficiency in sizing
• Deflective nozzle inlet on venturi protects orifice from solids and blocking
• Constant discharge of condensate improves heat transfer and allows condensate to always be removed from the steam system
• 20-year guarantee
